HD Utility Rack
Minimalistic Design
A sleek, low-profile design, specifically engineered and tested to prevent wind noise, is a great looking integration on any vehicle.
Premium Wear Strip
Why let loading and unloading take a toll on your gear and rack systems? Our new, extra-thick Wear Strip is included to protect equipment and T-slot crossbars, while keeping out debris.
Industry-Leading Customization
Profile™ Crossbars have built-in channels for adding Utility Ladder Stops, Rear Roller Assist, Built-In Ratchets and additional accessories.
750lb. Load Capacity
3″ x 1.5″ Heavy Duty, reinforced extruded aluminum crossbars are tested to support up to 250LBS per crossbar for maximum roof loading capacity (always follow OEM specified roof capacity ratings).
No Drill Installation
This ladder rack is easy to install, no drill required!
Available for all full-size low roof vans, compact vans, pickup trucks,
box trucks, trailers, enclosed service bodies, and truck toppers.
See the HD Utility Rack Options in Action
Download the PROFILE Brochure
Where Smart Design Meets Cargo Hauling
A Rack Customized to What You Carry
More options mean more flexibility and a better rack for your needs
The perfect rack for your business
Select a preconfigured rack developed for common industry needs or take charge and build your own with our configurator tool!
Preconfigured Racks

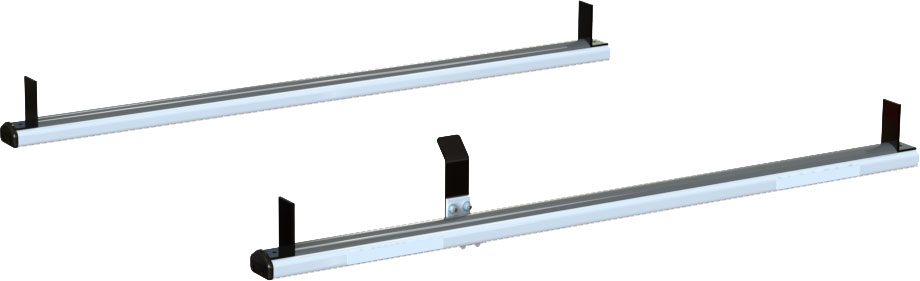

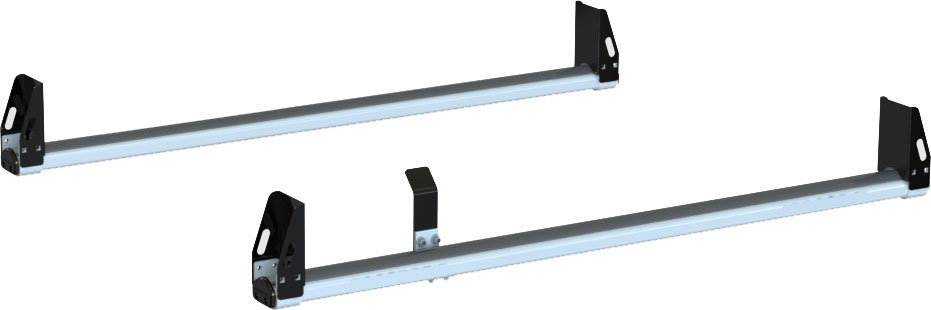

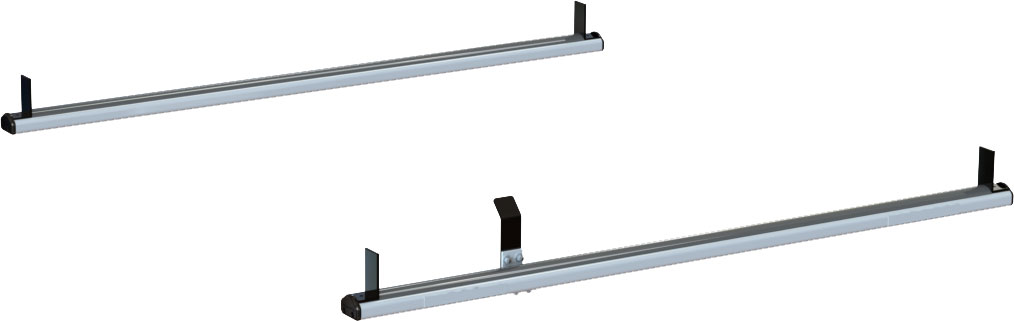

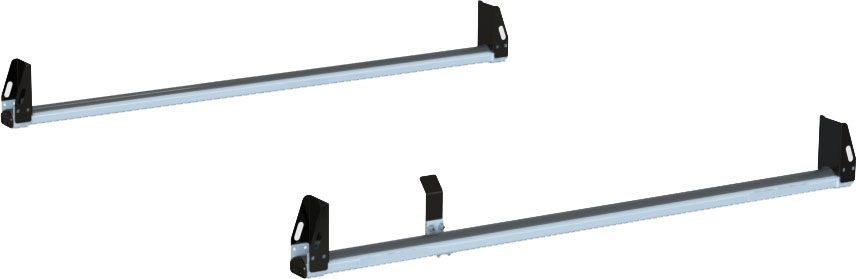

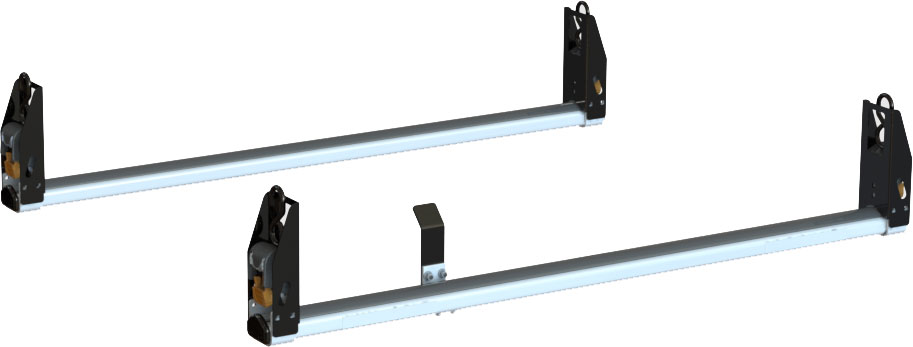

2-Bar Racks
Preconfigured racks do not include mounting kits. Click here to see mounting kit part numbers.
Full-Size Vans
Compact Vans

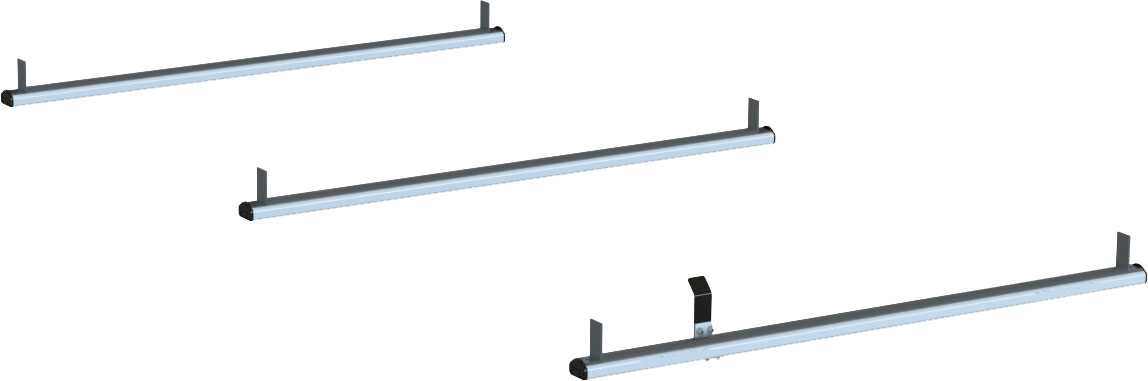

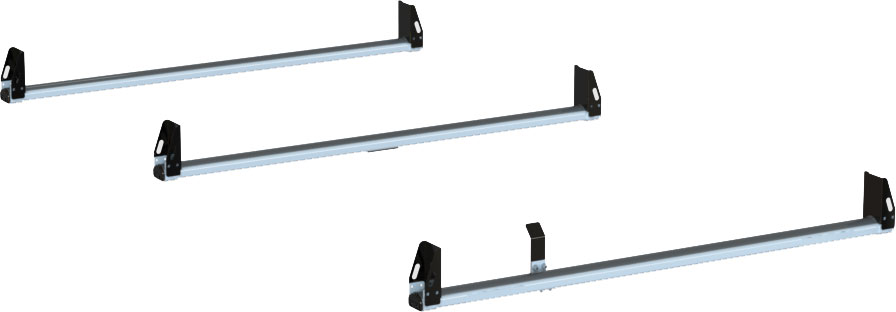

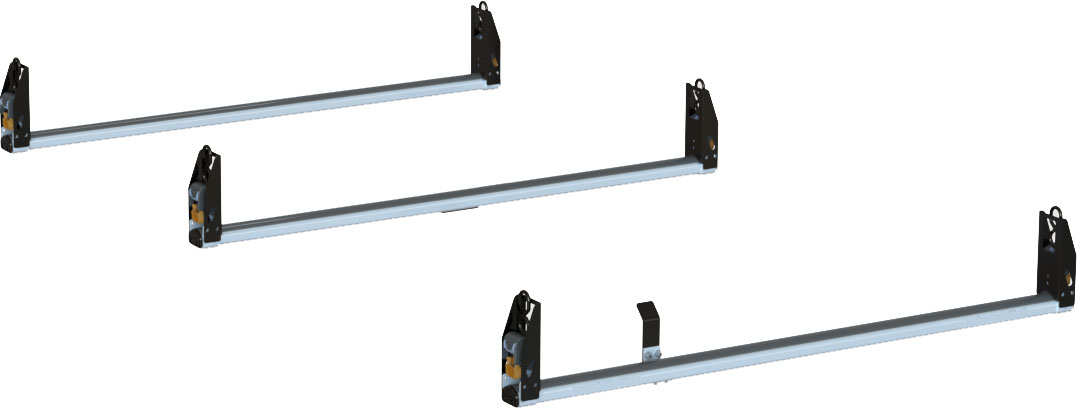

3-Bar Racks
Preconfigured racks do not include mounting kits. Click here to see mounting kit part numbers.
Full-Size Vans
3-Bar Racks with Rear Roller
Preconfigured racks do not include mounting kits. Click here to see mounting kit part numbers.
Transit, Low, Mid & High Roof
3-Bar w/ 6" Uprights & Rear Roller
Part #3B6RRFTW
Select OEM Mounting Kit
ProMaster, Low & High Roof
3-Bar w/ 6" Uprights & Rear Roller
Part #3B6RRPMW
Select OEM Mounting Kit
Build Your Own Rack
STEP 2: OEM Specific Mounting Kit
The mounting kits were designed for no-drill installation and are designed by OEM model.
- Base part numbers come in packs of 4 to accommodate the complete 2-bar rack.
- For 3-bar racks, add-on the 2-Pack.
| Mounting Brackets | 2-Pack | 4-Pack | |
|---|---|---|---|
| Ford | Transit Low Roof | FTMBK2W | FTMBK4W |
| Transit Mid/High Roof | FTMBK2W | FTMBK4W | |
| Transit Connect | TCMBK2W | TCMBK4W | |
| Chevrolet/GMC | Express/Savana | GMMBK2W | GMMBK4W |
| RAM | ProMaster Low/High Roof | PMMBK2W | PMMBK4W |
| ProMaster City | PMCMBK2W | PMCMBK4W | |
| Nissan | NV Cargo Low/High Roof | NVMBK2W | NVMBK4W |
| NV200 | NV200MBK2W | NV200MBK4W | |
| Mercedes | Sprinter Low/High Roof | SPMBK2W | SPMBK4W |
| Sprinter Low/High Roof w/ OEM Rail | SPRMBK2W | SPRMBK4W | |
| Metris | MMMBK2W | MMMBK4W |
STEP 3: Plastisol Uprights
All uprights are plastisol coated to protect cargo from damage and are compatible with full-size and compact vans.
Select the Upright that works for you:
4" Uprights
The most economical option for your rack.
6" Uprights
Upgrade your upright height to carry a taller load.
9" Uprights
Taller uprights for improved stack-ability of ladders, lumber, conduit, and other cargo.
9" Ratchet Upright
The best solution to save time and to improve piece of mind knowing your cargo is secured safely on the rack.
| Upright Kits | Single | 2-Pack | 4-Pack |
|---|---|---|---|
| 4″ Uprights | – | 4UPK2B | 4UPK4B |
| 6″ Uprights | – | 6UPK2B | 6UPK4B |
| 9″ Uprights | – | 9UPK2B | 9UPK4B |
| 9″ Ratchet Uprights | RSK1B | – | – |
STEP 4: Optional Add-On Accessories
All PROFILE™ – HD Utility Rack accessories were designed to work with crossbars. Accessories can be easily added or changed during or after installation. There are 3 types of accessories available:
1. Ladder Stop
Coated in plastisol to protect the rungs of your ladder while also providing a secure holding point to prevent your ladder from sliding forward off the rack during sudden stops.
2. Rear Roller Assist Bar
Makes loading and unloading cargo at the rear of the van much safer and easier. The roller bar also protects your vehicle while loading cargo.
3. Conduit Kits
Available in aluminum and PVC.
- PVC Conduit Kit with end cap: 4” or 6”
- Aluminum Conduit Kit: 10’6” or 12’6”
| Ladder Stop | Single | 2-Pack | 4-Pack | |
|---|---|---|---|---|
| Ladder Stop | ULSKB | – | – | |
| Rear Roller Assist | Single | Notes: | ||
| Ford | Transit Low Roof | RRBFTW | ||
| Transit Low/High Roof | RRBFTW | Not campatible with Transit High Roof 148″ Ext. | ||
| Transit Connect | – | Available for Full-Size Vans Only | ||
| Chevrolet/GMC | Express/Savana | RRBGMW | ||
| RAM | ProMaster Low/High Roof | RRBPMW | ||
| ProMaster City | – | Available for Full-Size Vans Only | ||
| Nissan | NV Cargo Low/High Roof | RRBNVW | ||
| NV200 | – | Available for Full-Size Vans Only | ||
| Mercedes | Sprinter Low Roof | RRBSPW | Not compatible with Sprinter High Roof | |
| Sprinter Low Roof w/ OEM Rail | RRBSPW | Not compatible with Sprinter High Roof | ||
| Metris | – | Available for Full-Size Vans Only | ||
| Conduit Kits | Single | Notes: | ||
|
All conduit kits and |
4″ End Caps for PVC | 70-1NGLR | ||
| 6″ End Caps for PVC | 70-2NGLR | |||
| 10’6″ Aluminum Box | 80-1NGLR | Can limit ladder width size compatibility on Compact Vans | ||
| 12’6″ Aluminum Box | 80-2NGLR | Can limit ladder width size compatibility on Compact Vans | ||
Utility Ladder Rack Solutions for nearly every vehicle!
| Conduit Kits | ||||||||
|---|---|---|---|---|---|---|---|---|
| Vehicle | Mounting Feet 1 4-Pack, 2 2-Pack |
Crossbars 1 Single, 2 2-Pack |
Upright Kits | Rear Roller | Aluminum 1 10’6″ 2 12’6″ |
PVC 1 4″ Cap, 2 6″ Cap |
Ladder Stop | |
| FORD | All upright Kits are compatible with all vehicles. | Doesn’t work with High Roof 148ext. | ||||||
| Transit Low Roof | 1 FTMBK4W 2 FTMBK2W |
2 2BARW 1 1BARW |
4” 4-Pack | 4UPK4B | RRBFTW | 1 80-1NGLR 2 80-2NGLR |
1 70-1NGLR 2 70-2NGLR |
ULSKB |
| 4” 2-Pack | 4UPK2B | |||||||
| Transit Mid/High Roof | 6” 4-Pack | 6UPK4B | ||||||
| 6” 2-Pack | 6UPK2B | |||||||
| 9” 4-Pack | 9UPK4B | |||||||
| Transit Connect | 1 TCMBK4W 2 TCMBK2W |
2 2BARCW 1 1BARCW |
9” 2-Pack | 9UPK2B | – | |||
| 9” Ratchet Single-Pack |
RSK1B | |||||||
| CHEVROLET/ GMC | All upright Kits are compatible with all vehicles. | |||||||
| Express / Savana | 1 GMMBK4W 2 GMMBK2W |
2 2BARW 1 1BARW |
See Above | RRBGMW | 1 80-1NGLR 2 80-2NGLR |
1 70-1NGLR 2 70-2NGLR |
ULSKB | |
| RAM | All upright Kits are compatible with all vehicles. | |||||||
| ProMaster Low/High Roof | 1 PMMBK4W 2 PMMBK2W |
2 2BARW 1 1BARW |
See Above | RRBPMW | 1 80-1NGLR 2 80-2NGLR |
1 70-1NGLR 2 70-2NGLR |
ULSKB | |
| ProMaster City | 1 PMCMBK4W 2 PMCMBK2W |
2 2BARCW 1 1BARCW |
– | |||||
| NISSAN | All upright Kits are compatible with all vehicles. | |||||||
| NV Cargo Low/High Roof | 1 NVMBK4W 2 NVMBK2W |
2 2BARW 1 1BARW |
See Above | RRBNVW | 1 80-1NGLR 2 80-2NGLR |
1 70-1NGLR 2 70-2NGLR |
ULSKB | |
| NV200 | 1 NV200MBK4W 2 NV200MBK2W |
2 2BARCW 1 1BARCW |
– | |||||
| MERCEDES | All upright Kits are compatible with all vehicles. | * Doesn’t work with High Roof | ||||||
| Sprinter Low/High Roof |
1 SPMBK4W 2 SPMBK2W |
2 2BARW 1 1BARW |
See Above | RRBSPW * | 1 80-1NGLR 2 80-2NGLR |
1 70-1NGLR 2 70-2NGLR |
ULSKB | |
| Sprinter Low/High Roof w/ OEM Rail |
1 SPRMBK4W 2 SPRMBK2W |
2 2BARW 1 1BARW |
RRBSPW * | |||||
| Metris | 1 MMMBK4W 2 MMMBK2W |
2 2BARCW 1 1BARCW |
||||||
